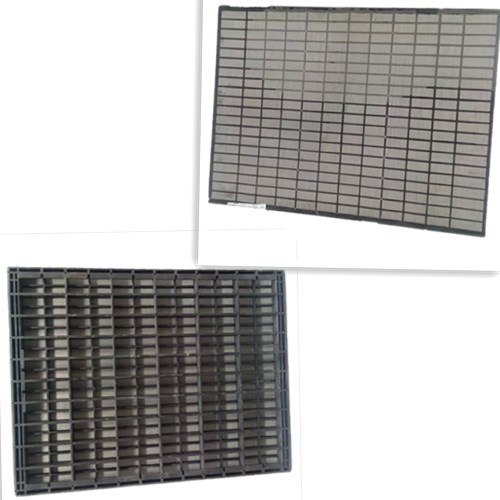

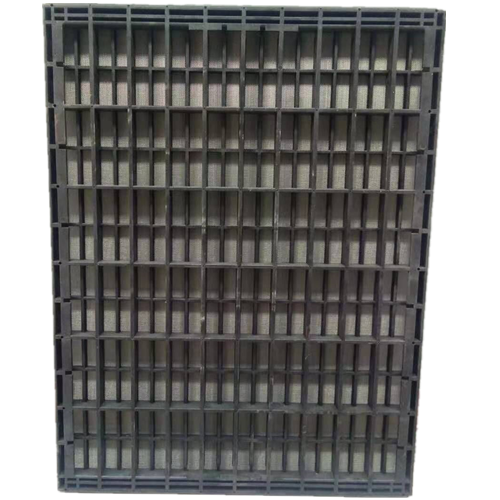

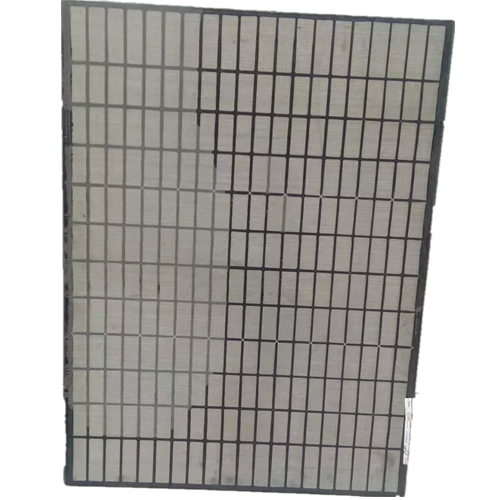

Swaco BEM-650 Shaker Screens

Share to:
sharethis sharing button
Composite shale shaker screen is mainly composed of composite frame and 2 or 3 layers stainless steel wire cloths. The wire cloth can be combined with the frame with metal rubber lining, or directly bonded on the frame.
  • Mongoose

  • Xinghuo

  • 84749000

Color:
Size:
Material:
Mesh Range:
Application:
Availability:
Quantity:

1. Composite shale shaker screen is mainly composed of composite frame and 2 or 3 layers stainless steel wire cloths. The wire cloth can be combined with the frame with metal rubber lining, or directly bonded on the frame.

2. Every layer of wire cloth has different meshes, accurately and reasonably making screening more micromesh.

3. High-strength composite frame shaker screen and moderate tensional screening cloth, that form a reliable whole, greatly enhance the tolerable flow .

4. Rapid wedge tensioning devices make screen installation more convenient, and save the time of machine halt for changing .

5. Wire cloth is divided into several independent small cloths to prevent excessive expansion of local damage.

6. Excellent high-strength composite frames enhance corrosion resistance. Have good shock absorption and extend working life of screen .

ModelSwaco BEM-650
Size915mm*700mm
Mesh Range20-325
ColorBlack
Weight6.5KGS

For this factory always insists on the rules of taking science, technology, and innovation as technical guide, the sincerity and practicality as management aim and the mutual benefit as cooperating base, we are rewarded by authorities above the county level, trusted by banks and well received by customers.
